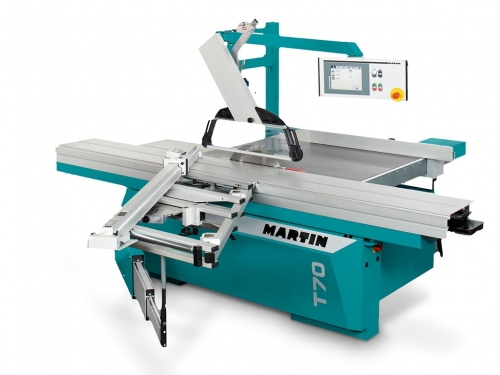

T70 Automatic table saw

State-of-the-Art Electronics

Even with the standard equipment, the Automatic model supports you with three controlled axes for the cutting height, angle, and width; optionally, a motorised cross-cut fence can be added as the fourth axis. If you go for the mitre-cutting system "Control" with its electronically controlled cross-cut fence and bus-connected mitre cross-cut table, you can even perform diagonal and compound mitre cuts with full electronic support.

Easy Handling Even for Complex Tasks

The data of up to 100 tools and 1000 cutting settings can be stored in the clearly structured, user-friendly control (up to 7000 individual values). The touchscreen control only shows the "buttons" and displays needed for the respective situation. The menu leading the user through the work processes, providing comprehensive operator guidance for complex tasks.

Tool Conversion Ensures Speed and Accuracy

When changing the main saw blade, all you have to do is register it with its nickname. The tool conversion immediately computes important information such as the diameter, body thickness, and kerf width of the blade. The blade geometry is calculated continuously, thus enabling precise cuts even when the saw blade is tilted.

Easy Length Compensation

On the T70 Automatic, the optional angle-cutting system "RadioCompens" reduces the set-up times for angle cuts by more than 80%. You merely need to set the mitre cross-cut table that is connected to the control over a bus line to the desired cutting angle � the radio-controlled electronics do everything else for you. This system fully integrates the table angle in the control as the fifth axis. This technology always lets the correctly calculated measurement appear in both displays of the digital length stop included in the package. Price is for a basic unit, please call for price quote. Sales areas are restricted to Northeast.
